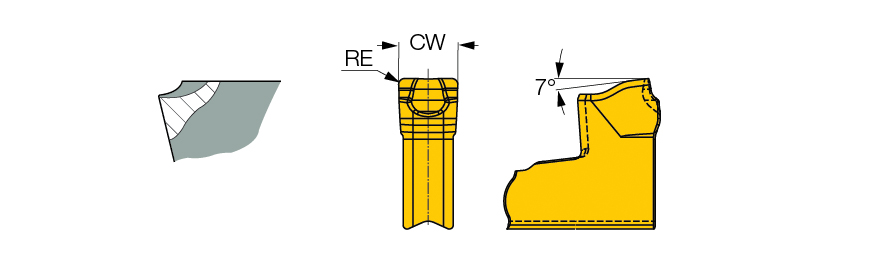

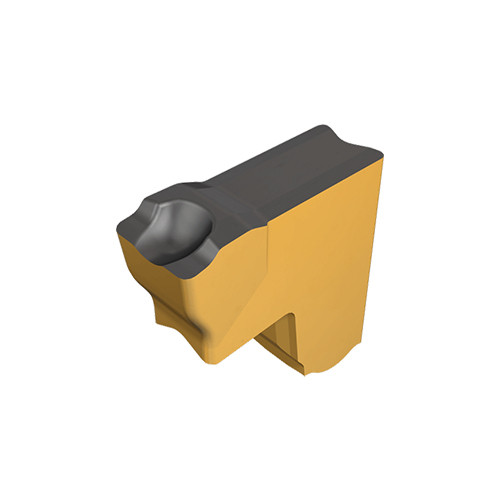

TAG N3UT IC830
Parting Off Insert; 0.118″ CW × 0.0118″ Corner Radius ; Neutral ; Carbide ; AlTiN+TiN ; IC830
| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0118″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC830 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys (especially in the bearing industry), ductile materials and low carbon steel. The narrow chipformer design ensures short deformed chips. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
