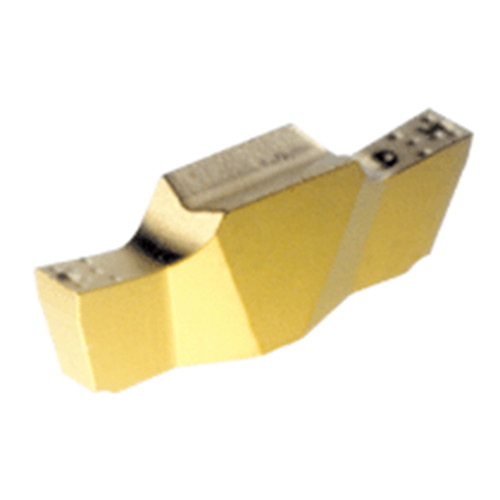

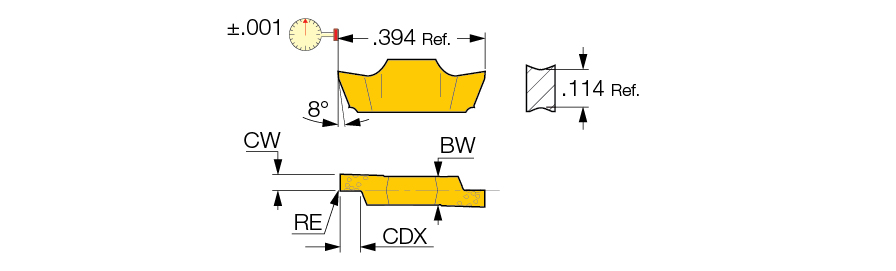

GEPI 1.00-0.10 LX IC528
Parting Off Insert; 0.039″ CW × 0.394″ Length × 0.004″ Corner Radius ; Left Hand ; Carbide ; TiCN+TiN ; IC528
| Cutting Width (CW) | 0.039″ | Application | | Int. Grooving | |
| Corner Radius (RE) | 0.004″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.0012 ″/rev |
| Overall Length (OAL) | 0.394″ | Min. Grooving Feed (fg(min)) | 0.0004 ″/rev |
| Insert Length (INSL) | 0.394″ | Chip Breaker Type | FG |
| Cutting Depth Maximum (CDX) | 0.059″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC528 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Cutting Direction (HAND) | Left Hand | Insert Width (W1) | 0.071″ |
Product Features
| Family Description | Precision double-ended inserts for internal grooving next to shoulder. Min. bore diameter .49″. | Country of Origin | Israel |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance DMIN for internal application=.453 |
Shipping Info
Package Weight
0.003
