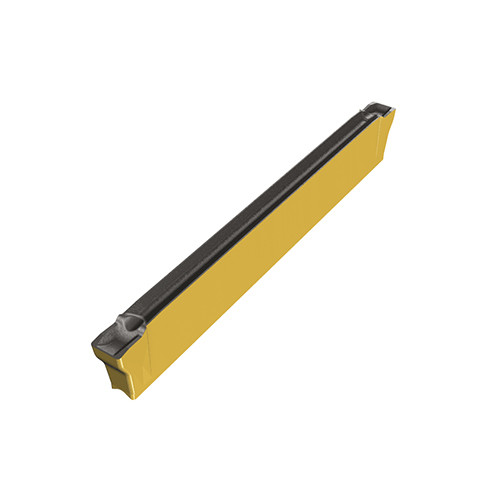

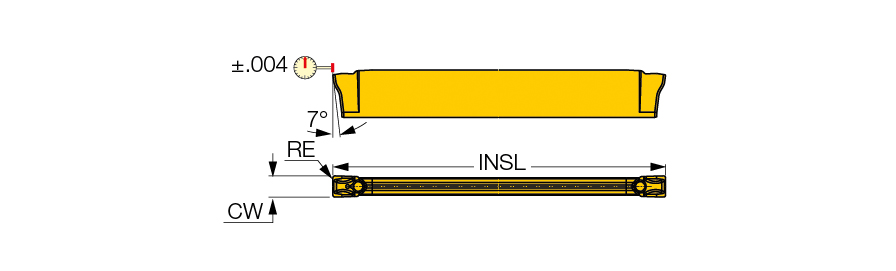

DGN 3002C-XL IC830
Parting Off Insert; 0.118″ CW × 1.378″ Length × 0.0079″ Corner Radius ; Neutral ; Carbide ; AlTiN+TiN ; IC830
| Cutting Width (CW) | 0.118″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079″ | Application | | Ext. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 1.378″ | Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Insert Length (INSL) | 1.378″ | Min. Grooving Feed (fg(min)) | 0.0027 ″/rev |
| Cutting Depth Maximum (CDX) | 1.28″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
Product Features
| Family Description | First choice for the parting of bars up to 2.56″ diameters, hard materials and tough applications. A positive rake with a single cavity and a negative land. Provides extra cutting-edge strength. Used for medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Length
5.00000
Package Width
2.80000
Package Height
.40000
Package Weight
0.018
