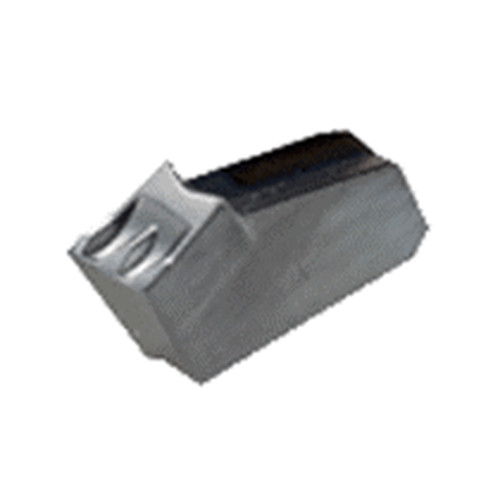

GFL 3W - 8D IC20
Parting Off Insert; 0.118″ CW × 0.0079″ Corner Radius ; Left Hand ; Carbide ; Uncoated ; IC20

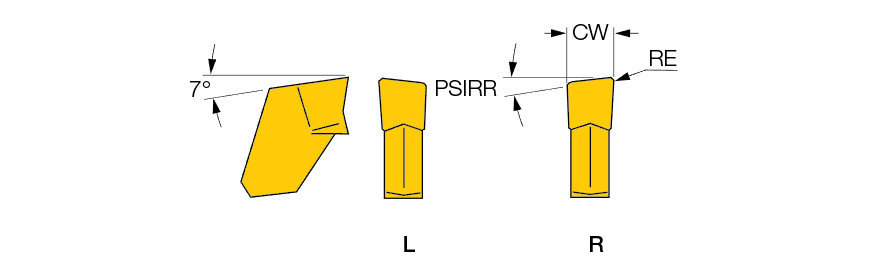

| Cutting Width (CW) | 0.118″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0 ″/rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0 ″/rev |
| Coating | Uncoated | Chip Breaker Type | W |
| Grade | IC20 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Angle | 12 Degrees |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Application | | Parting | | Body Material | Carbide |
Product Features
| Family Description | Parting and grooving, single-ended insert. W-type chipformer with a central ridge that forms double cavities on the rake face. Most efficient on alloy and stainless steel. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
