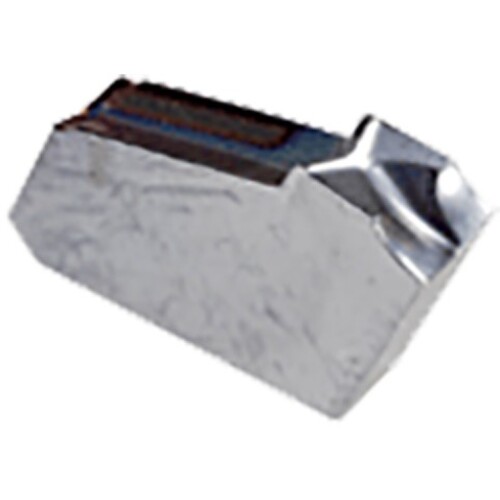

GFR 1.6J -15D IC20
Parting Off Insert; GFR1.6J15D IC20 0.063″ CW × 0.0063″ Corner Radius ; Right Hand ; Carbide ; Uncoated
| Cutting Width (CW) | 0.063″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Corner Radius (RE) | 0.0063″ | Max. Grooving Feed (fg(max)) | 0.002 ″/rev |
| Cutting Edge Material | Carbide | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | |
Product Features
| Family Description | First choice for soft materials, low carbon steel, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with a positive rake, used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
