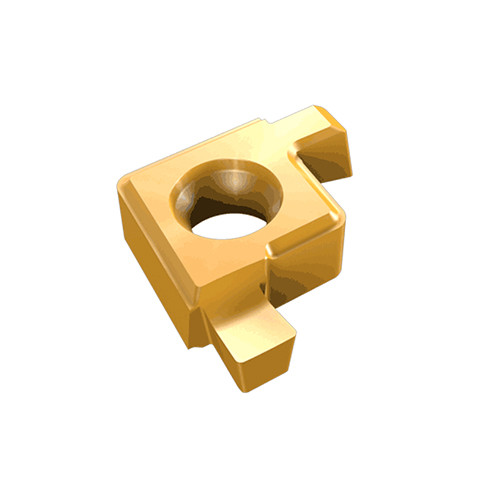

XCMT 05R-201802-MG IC808G
Parting Off Insert; 0.079″ CW × 0.09″ Thickness × 0.0079″ Corner Radius ; Right Hand ; Carbide ; TiAlN+AlTiN+TiN ; IC808G

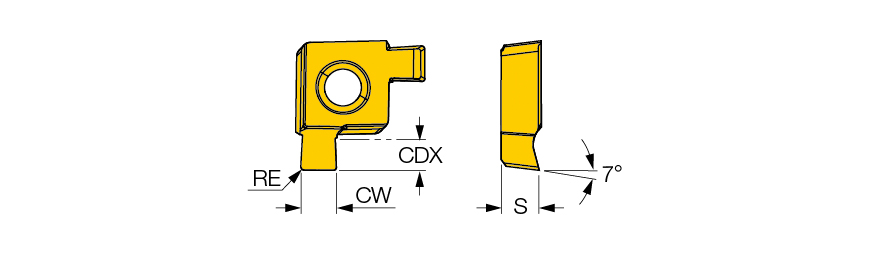

| Cutting Width (CW) | 0.079″ | Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.09″ | Max. Grooving Feed (fg(max)) | 0.0027 ″/rev |
| Overall Length (OAL) | 0.22″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.071″ | Insert Rake Angle (GAN) | 7 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC808G | Measurement Type | Inch |
| Shape | Special | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
Product Features
| Family Description | Two cutting edged internal grooving inserts for DR-MF multifunction tools. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.004
