GFR 4 - 6D IC328
Parting Off Insert; 4.1 mm CW × 0.3 mm Corner Radius ; Right Hand ; Carbide ; TiCN ; IC328

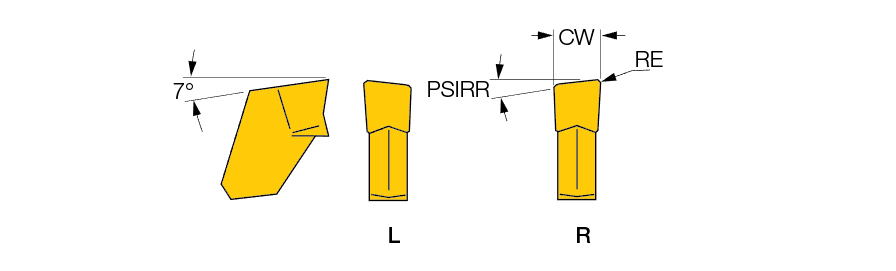

| Cutting Width (CW) | 4.1 mm | Max. Grooving Feed (fg(max)) | 0.14 mm/rev |
| Corner Radius (RE) | 0.3 mm | Min. Grooving Feed (fg(min)) | 0.08 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC328 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
