MIUR 8-2.00-1.00 IC908
Parting Off Insert; 0.079″ CW × 0.0394″ Corner Radius ; Carbide ; TiAlN ; IC908

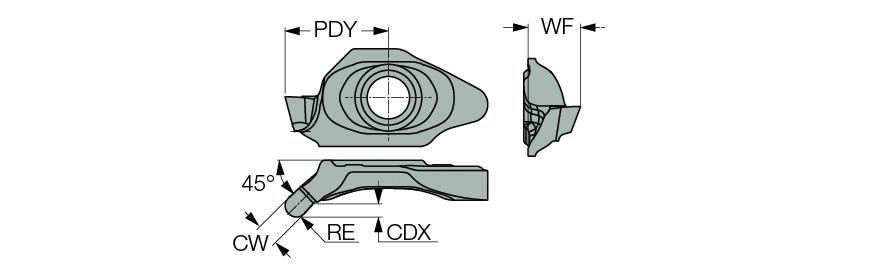

| Cutting Width (CW) | 0.079″ | Min. Grooving Feed (fg(min)) | 0.0004 ″/rev |
| Corner Radius (RE) | 0.0394″ | Tool Type | Groove-Turn Precision Inserts |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Angle | 12 Degrees |
| Cutting Depth Maximum (CDX) | 0.024″ | Minimum Bore Diameter (DMIN) | 0.327″ |
| Cutting Edge Material | Carbide | Min D.O.C. | 0.001″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Depth of Cut Maximum (APMX) | 0.02″ |
| Shape | 90° Rectangular | Functional Width (WF) | 0.142″ |
| Application | | Int. Undercut & Turning | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Max. Grooving Feed (fg(max)) | 0.0012 ″/rev |
Product Features
| Family Description | MINCUT 45° full radius internal undercutting inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.003
