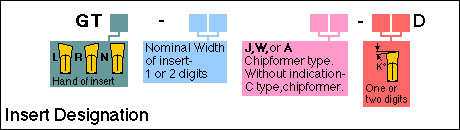

GTR 4 - 8D IC354

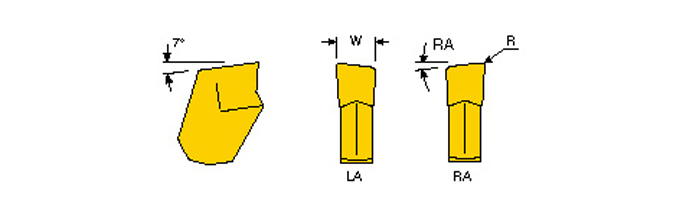

Parting Off Insert; 0.161″ CW × 0.009″ Corner Radius ; Left Hand ; Carbide ; TiCN ; IC354
| Cutting Width (CW) | 0.161″ | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.009″ | Applicable Material | Steel|Stainless Steel |
| Cutting Edge Material | Carbide | Cutting Edge Angle Major Left Hand (PSIRL) | 8 Degrees |
| Coating | TiCN | Angle | 12 Degrees |
| Grade | IC354 | Measurement Type | Inch |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications at medium-to-high feeds. A positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. | Country of Origin | Israel |
Shipping Info
Package Weight
0.02
