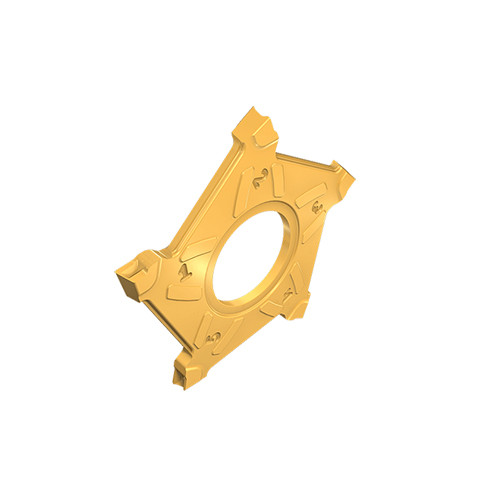

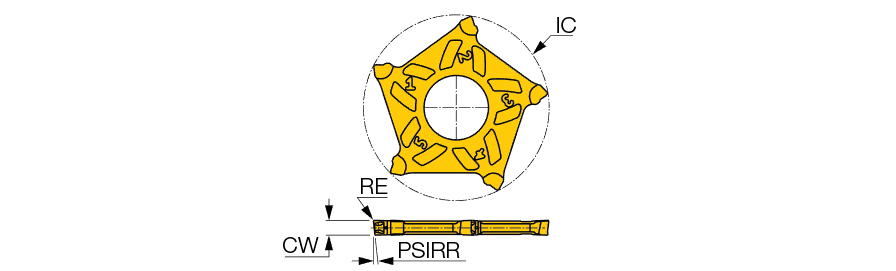

PENTA D32R200C-15D IC808G
Parting Off Insert; 0.079″ CW × 0.0079″ Corner Radius ; Right Hand ; Carbide ; TiAlN+AlTiN+TiN ; IC808G

| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC808G | Angle | 12 Degrees |
| Shape | 108° Pentagonal | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 15 Degrees |

Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.03
