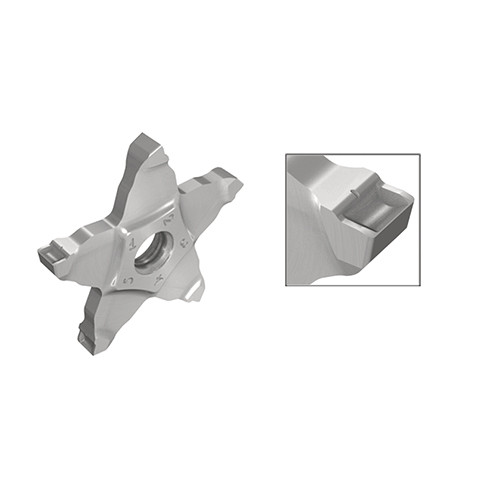

PENTA 34R150C08D IC908
Parting Off Insert; 0.059″ CW × 0.0027″ Corner Radius ; Right Hand ; Carbide ; TiAlN ; IC908

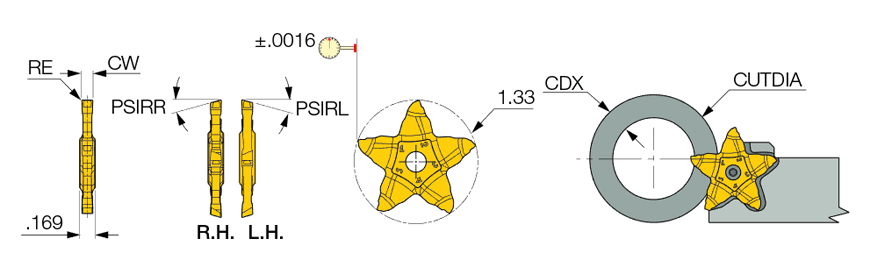

| Cutting Width (CW) | 0.059″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.0027″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Chip Breaker Type | C |
| Cutting Depth Maximum (CDX) | 0.315″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Work Piece Parting Diameter Maximum (CUTDIA) | 0.709″ |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 8 Degrees |
| Application | | Parting | | Insert Width (W1) | 0.169″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.044
