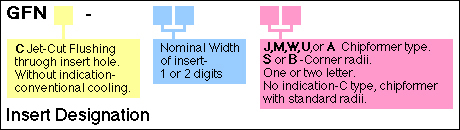

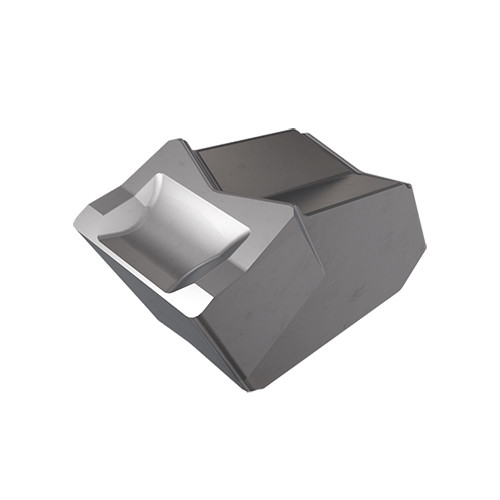

GFN 3B IC308

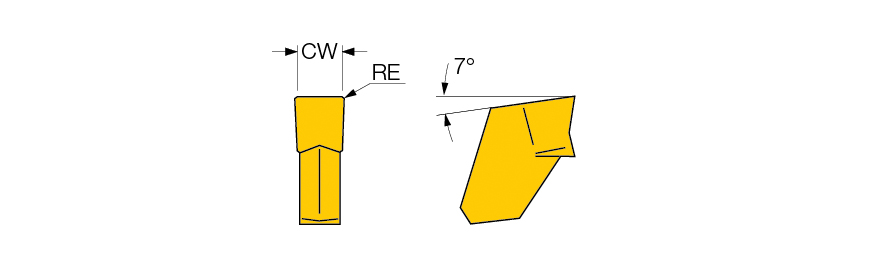

Parting Off Insert; 0.119″ CW × 0.012″ Corner Radius ; Neutral ; Carbide ; TiCN ; IC308
| Cutting Width (CW) | 0.119″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.012″ | Max. Grooving Feed (fg(max)) | 0.0118 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0039 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC308 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Int. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.013
