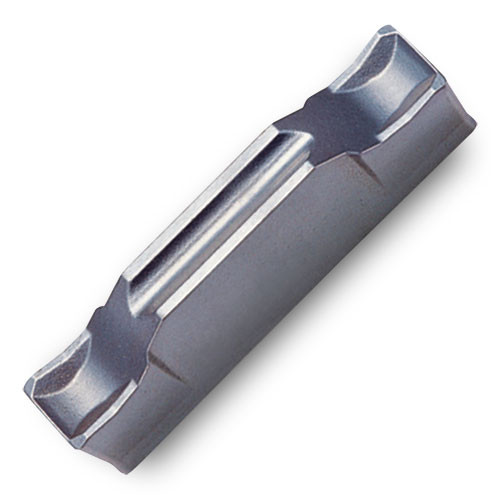

TDC2 TT8020
Parting Off Insert; 0.079″ CW × 0.79″ Length × 0.067″ Thickness × 0.008″ Corner Radius ; Neutral ; Carbide ; TiCN ; TT8020

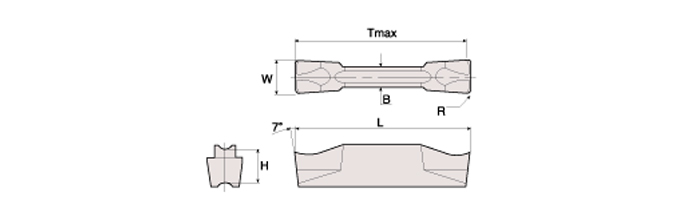

| Cutting Width (CW) | 0.079″ | Max. Grooving Feed (fg(max)) | 0.0071″ |
| Corner Radius (RE) | 0.008″ | Min. Grooving Feed (fg(min)) | 0.002″ |
| Insert Thickness (S) | 0.067″ | Insert Size | 2 |
| Insert Length (INSL) | 0.79″ | Number of Cutting Edges | 2 |
| Cutting Depth Maximum (CDX) | 0.748″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN | Clearance Angle Major (AN) | 7 Degrees |
| Grade | TT8020 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Insert Seat Size Code (SSC) | 2 |
| Application | | Ext. Grooving | Parting | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.007
