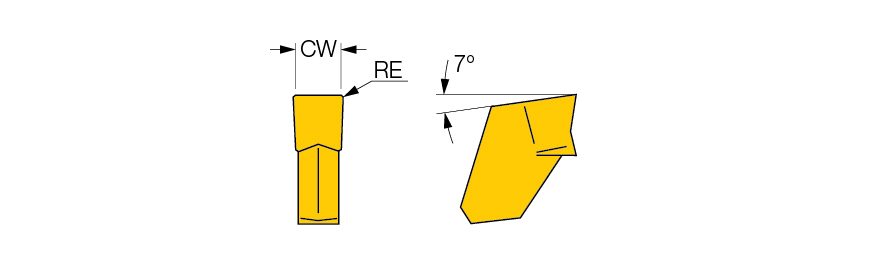

GFN 5M IC20
Parting Off Insert; 5.1 mm CW × 0.28 mm Corner Radius ; Neutral ; Carbide ; Uncoated ; IC20
| Cutting Width (CW) | 5.1 mm | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.28 mm | Max. Grooving Feed (fg(max)) | 0.25 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | M |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Int. Grooving | Parting | |
Product Features
| Family Description | First choice for the parting of nonferrous materials, high temperature alloys (Ni-base, inconel, etc). Single cavity with a strong cutting edge. Used for deep grooving at medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.007
