15N1F-2001940R00

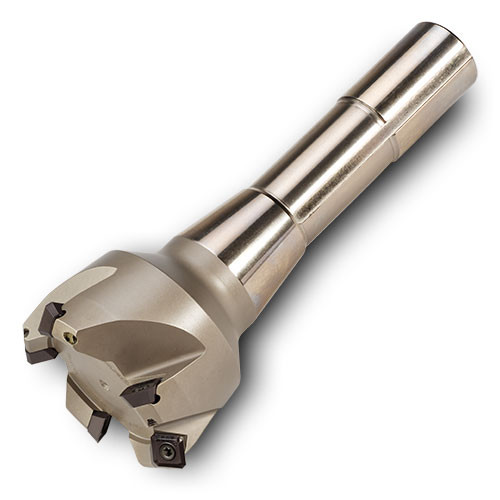

Indexable End Mill; 2.4″ Dia. × 0.18″ LOC × 5.9″ OAL ; 45 Degrees
| Cutting Diameter (DC/DCX) | 2.4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 2″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.18″ | Measurement Type | Inch |
| Overall Length (OAL) | 5.9″ | Body Material | Steel |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 2.4″ |
| Functional Length (LF) | 1.9″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.004
