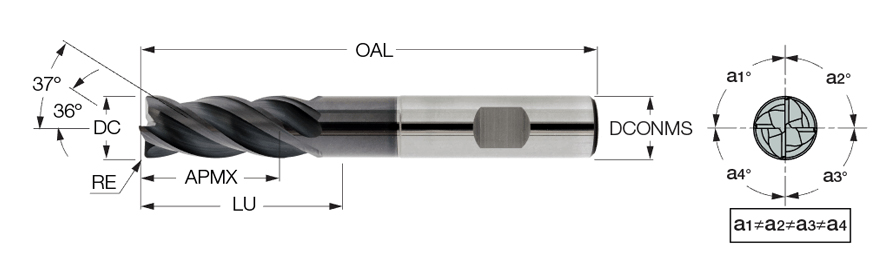

EC-H4L 08-16/26W8CFR.4-63 IC900
| Cutting Diameter (DC) | 8 mm | Application | Finishing | Roughing | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 16 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 63 mm | Grade | IC900 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 35 Degrees | Length Group | Medium |
| Shank Type | Weldon | Coolant Supply Property (CSP) | External |
| End Shape | Corner Radius | Decimal Equivalent | 0.035″ |
| Usable Length (LU) | 26 mm | Measurement Type | Metric |
| Applicable Material | Steel |Stainless Steel |Cast Iron |Hard Materials |Hi Temp Alloys | |
Product Features
| Family Description | 4 flute endmills with different helix (35° & 37°) and variable pitch for chatter dampening with assorted radii and relieved neck. Used for very high material removal rates roughing and finishing operations. Full slot milling-up to 2XD. | Country of Origin | Israel |
Shipping Info
Package Weight
0.095
