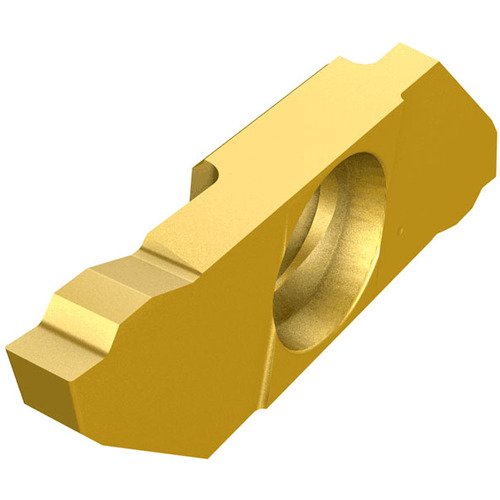

SCIR 22-100N-00 IC1008

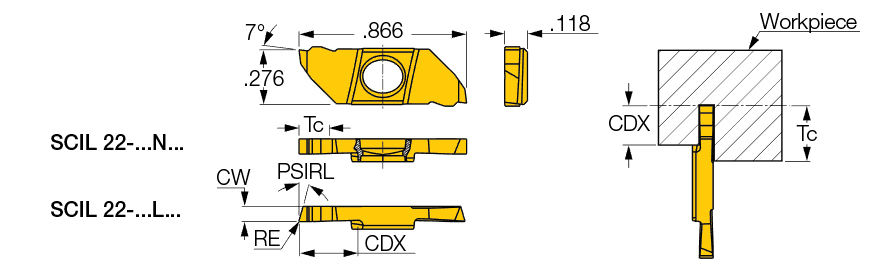

Parting Off Insert; 0.039″ CW × 0.866″ Length × 0.276″ Thickness × 0″ Corner Radius ; Right Hand ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Width (CW) | 0.039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0″ | Max. Grooving Feed (fg(max)) | 0.002 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.276″ | Insert Rake Angle (GAN) | 7 Degrees |
| Insert Length (INSL) | 0.866″ | Chip Breaker Type | FG |
| Cutting Depth Maximum (CDX) | 0.157″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IC1008 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Angle Major Right Hand (PSIRR) | 0 Degrees |
| Cutting Direction (HAND) | Right Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Application | | Ext. Grooving | Parting | | Insert Width (W1) | 0.118″ |
Product Features

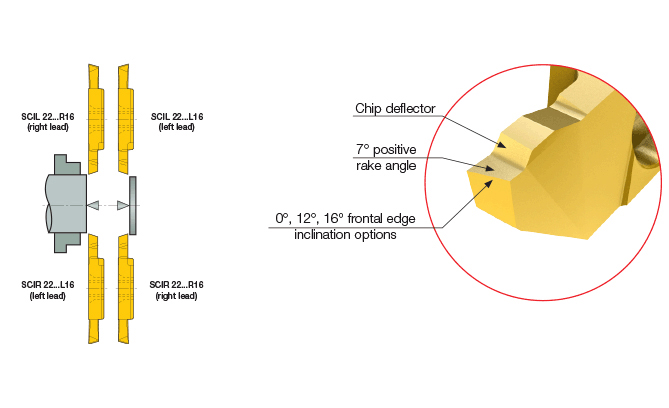

| Family Description | Grooving and parting inserts with parallel and frontal lead angle for reduced burr remaining on the workpiece. Used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
