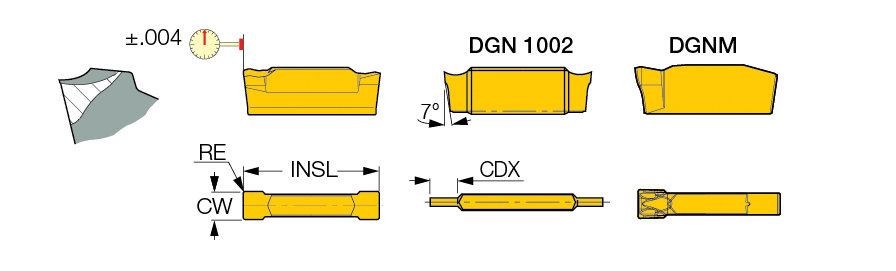

DGN 5003J IC1028

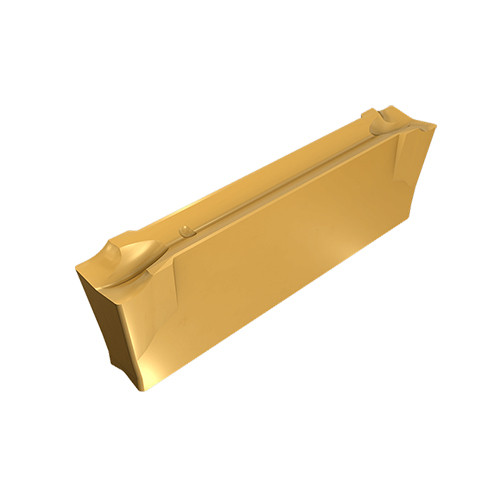

Parting Off Insert; 0.197″ CW × 0.0118″ Corner Radius ; Neutral ; Carbide ; TiAlN+TiN ; IC1028
| Cutting Width (CW) | 0.197″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Overall Length (OAL) | 0.748″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Insert Length (INSL) | 0.748″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+TiN | Measurement Type | Inch |
| Grade | IC1028 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Cutting Direction (HAND) | Neutral |

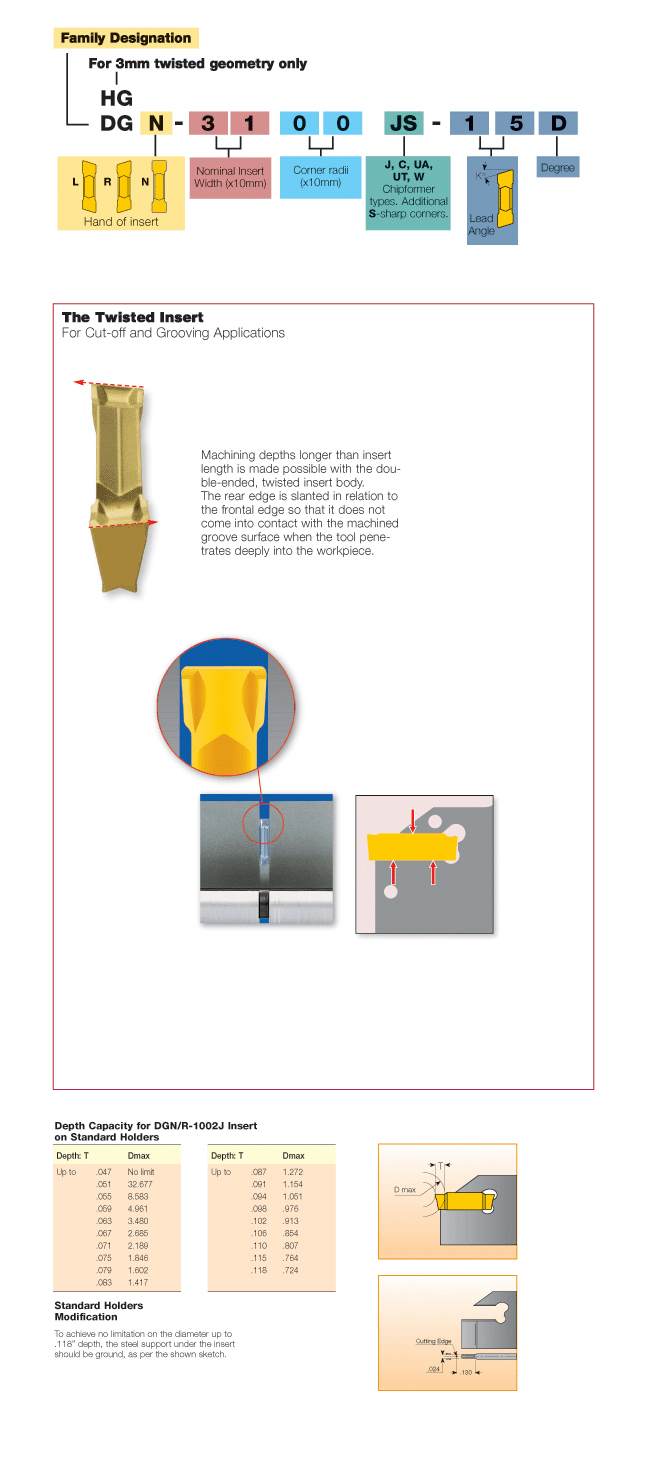

Product Features
| Family Description | First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. JS - sharp corner. DGNM - single-ended. | Country of Origin | Israel |
| Remarks | JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds |
