15B1H-1502281R01

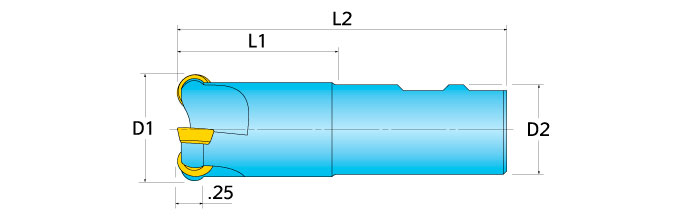

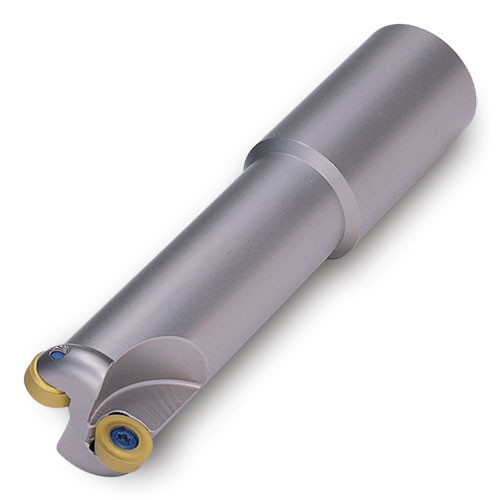

Indexable End Mill; 1-1/2″ Dia. × 1/4″ Max Depth × 1-1/4″ Shank Dia. × 4-1/2″ OAL
| Cutting Diameter (DC/DCX) | 1-1/2″ | Corner Radius (RE) | 1/4″ |
| Cutting Diameter (DC) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 4-1/2″ | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | | Protruding Length (LPR) | 2-1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | Cutting Edge Radius: .25″ R .500″ Button I.C. | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
