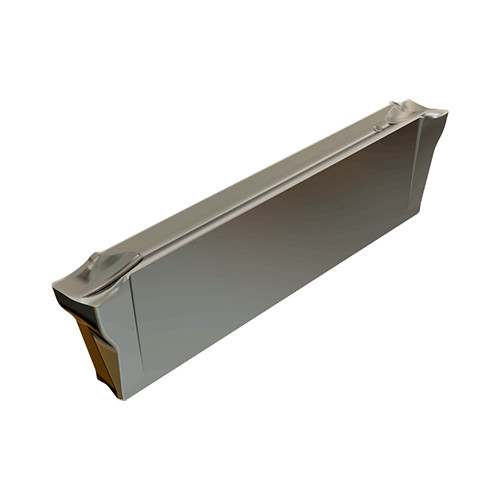

DGL 3100JS-15D IC354
Parting Off Insert; 0.122″ CW × 0.0008″ Corner Radius ; Left Hand ; Carbide ; TiCN ; IC354

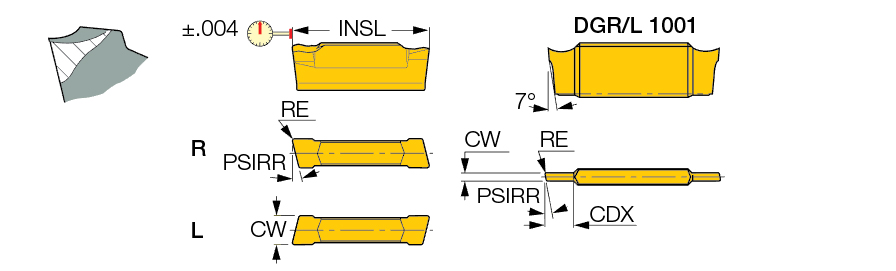

| Cutting Width (CW) | 0.122″ | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.0008″ | Application | | Parting | |
| Overall Length (OAL) | 0.811″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.811″ | Max. Grooving Feed (fg(max)) | 0.0027 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Angle | 12 Degrees |
| Grade | IC354 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
Product Features
| Family Description | First choice for soft materials such as low carbon, alloy and austenitic stainless steel, parting of tubes, small diameters and thin-walled parts at low-to-medium feeds. Cutting edge with a positive rake. JS-type has a sharp corner. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
