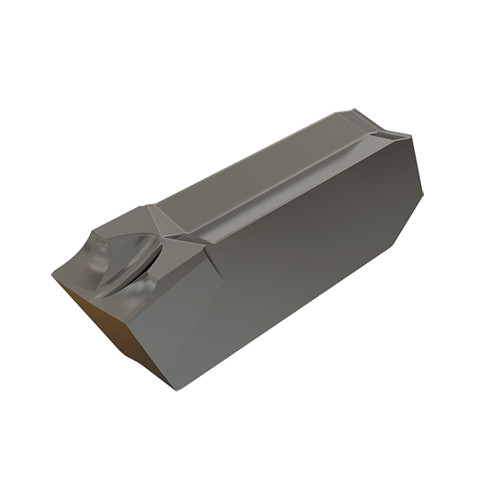

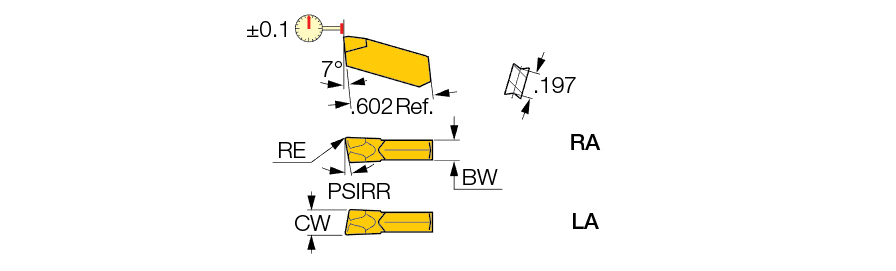

GIM 3J-4RA IC20
Parting Off Insert; 0.118″ CW × 0.602″ Length × 0.0098″ Corner Radius ; Right Hand ; Carbide ; Uncoated ; IC20
| Cutting Width (CW) | 0.118″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius (RE) | 0.0098″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Overall Length (OAL) | 0.602″ | Chip Breaker Type | J |
| Insert Length (INSL) | 0.602″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | IC20 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Cutting Direction (HAND) | Right Hand | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
| Application | | Parting | Slitting | | Insert Width (W1) | 0.094″ |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for soft materials, parting of tubes, small diameters and thin-walled parts. General applications on low carbon, alloy and austenitic stainless steel. Low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.010
