15B1F-1003780R01

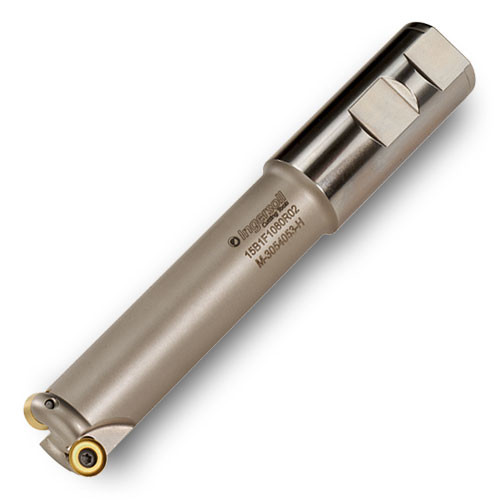

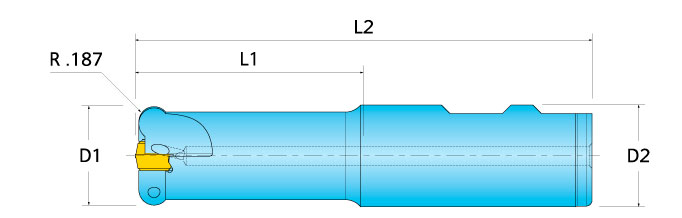

Indexable End Mill; 1″ Dia. × 0.18″ LOC × 1″ Shank Dia. × 6″ OAL
| Cutting Diameter (DC/DCX) | 1″ | Corner Radius (RE) | 0.187″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.18″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 9 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | | Protruding Length (LPR) | 3-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1″ |
Product Features
| Family Description | .187″ Max. depth of cut .375″ Button I.C. | Country of Origin | Usa |
