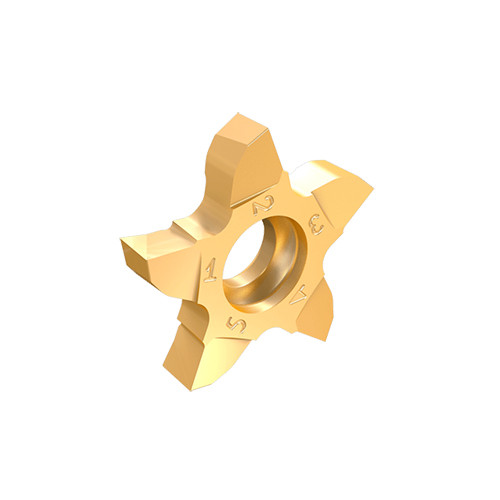

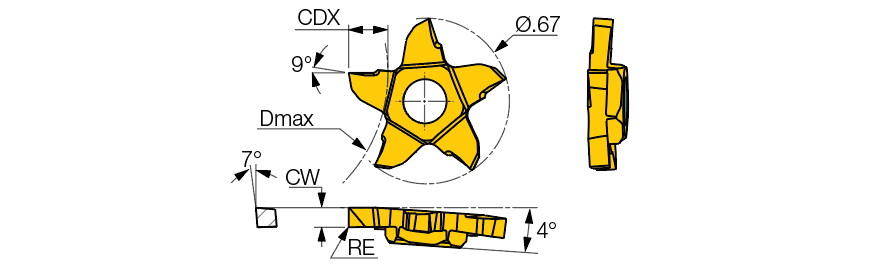

PENTA 17-100NP08LS IC1008
Parting Off Insert; 0.039″ CW × 0.0031″ Corner Radius ; Carbide ; TiAlN+TiN ; IC1008
| Cutting Width (CW) | 0.039″ | Max. Grooving Feed (fg(max)) | 0.0024 ″/rev |
| Corner Radius (RE) | 0.0031″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Chip Breaker Type | NP |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+TiN | Work Piece Parting Diameter Maximum (CUTDIA) | 1.26″ |
| Grade | IC1008 | Measurement Type | Inch |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
Product Features
| Family Description | Precision grooving and turning pentagonal inserts. Used for next to high shoulder applications on small diameter parts. | Country of Origin | Israel |
| Remarks | When turning to the opposite side of chipformer, maximum CDX is .020 For parting and grooving range, click on More Info |
Shipping Info
Package Weight
0.009
