PENTA D40N300C020 IC808G
Parting Off Insert; 0.119″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN+AlTiN+TiN ; IC808G

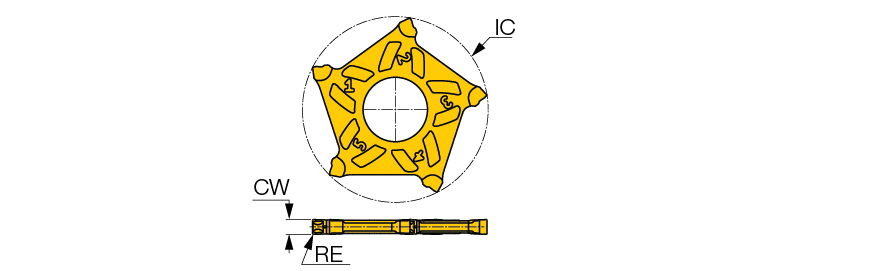

| Cutting Width (CW) | 0.119″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0087 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiAlN+AlTiN+TiN | Tool Type | Parting & Grooving Inserts |
| Grade | IC808G | Angle | 12 Degrees |
| Shape | 108° Pentagonal | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |

Product Features
| Family Description | Used for parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders. Medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Length
1.33000
Package Width
1.33000
Package Height
.11000
Package Weight
0.25
