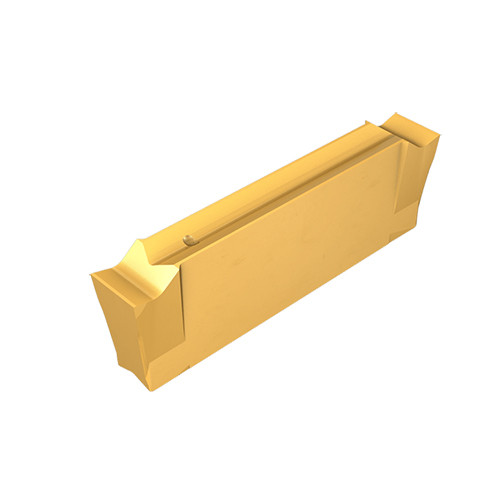

DGN 1000P IC508
Parting Off Insert; 0.039″ CW × 0.787″ Length × 0.002″ Corner Radius ; Neutral ; Carbide ; TiCN+TiN ; IC508

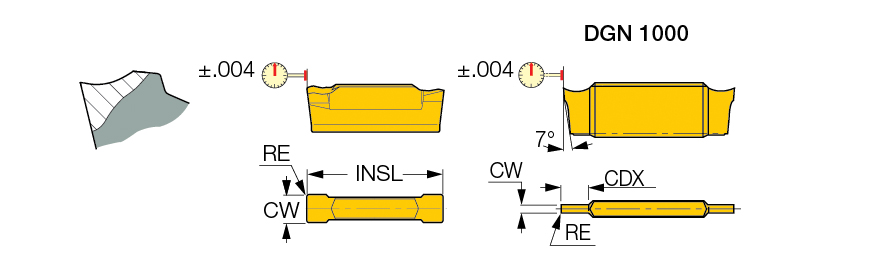

| Cutting Width (CW) | 0.039″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.002″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.787″ | Max. Grooving Feed (fg(max)) | 0.002 ″/rev |
| Insert Length (INSL) | 0.787″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Depth Maximum (CDX) | 0.118″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC508 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
Product Features
| Family Description | Double-sided insert with a very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used on soft materials, thin parts and general parting at low feed. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
