DGR 1900WP-12D IC328

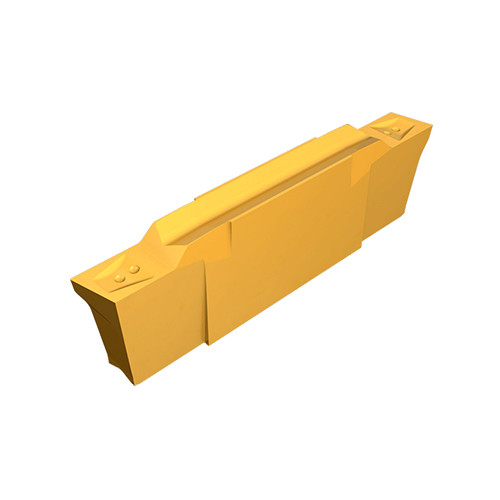

Parting Off Insert; 0.075″ CW × 0.776″ Length × 0.002″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC328

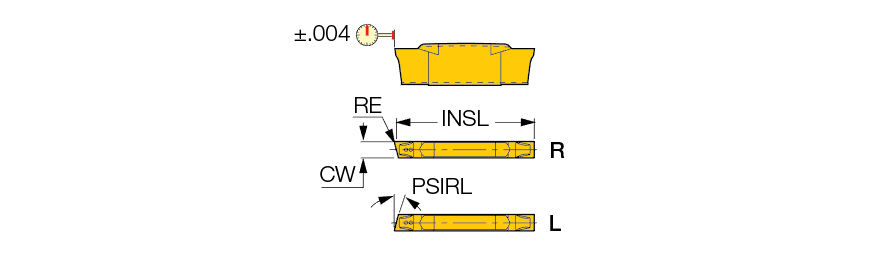

| Cutting Width (CW) | 0.075″ | Application | | Parting | |
| Corner Radius (RE) | 0.002″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.776″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Insert Length (INSL) | 0.776″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.236″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Angle Major Right Hand (PSIRR) | 12 Degrees |
| Cutting Direction (HAND) | Right Hand |

Product Features
| Family Description | Parallel wiper design for improved flatness and surface finish. For best results, apply cutting oil. An improved alternative for HSS blades. Low cutting forces. Used at low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
