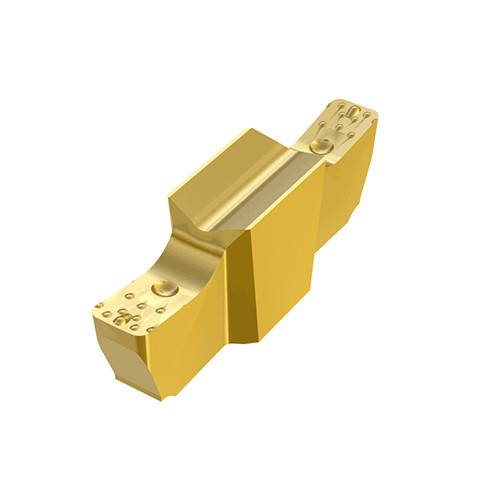

GEPI 1.47-0.00 IC08
Parting Off Insert; 0.058″ CW × 0.394″ Length × 0″ Corner Radius ; Carbide ; Uncoated ; IC08

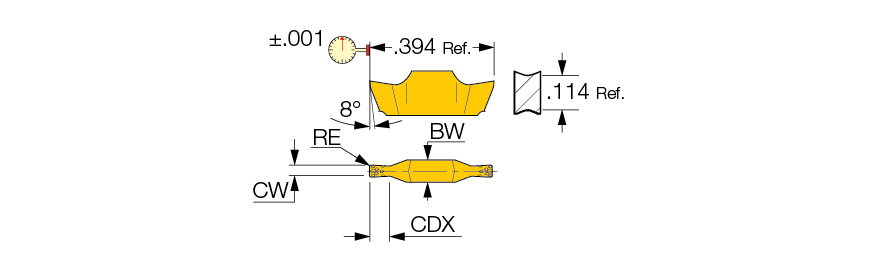

| Cutting Width (CW) | 0.058″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius (RE) | 0″ | Max. Grooving Feed (fg(max)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Overall Length (OAL) | 0.394″ | Chip Breaker Type | FT |
| Insert Length (INSL) | 0.394″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.079″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Shape | 90° Rectangular | Insert Width (W1) | 0.071″ |
| Application | | Int. Grooving (side limit) | |
Product Features
| Family Description | Precision double-ended inserts, used for internal grooving at low feeds in diameters from .453″ | Country of Origin | Israel |
| Remarks | E12 GEHIR 16-1 seat needs to be modified according to insert profile to ensure clearance DMIN for internal application=.453 |
Shipping Info
Package Weight
0.004
