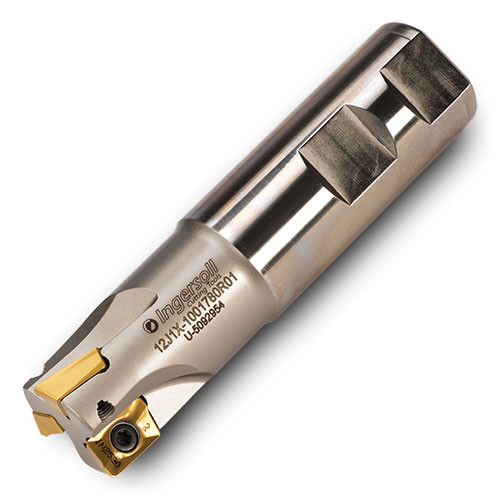

12J1X-0701784R01
Indexable End Mill; 3/4″ Dia. × 0.49″ LOC × 3/4″ Shank Dia. × 3-3/4″ OAL × 1.55″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 1.55″ |
| Cutting Diameter (DC) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.49″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3-3/4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 7 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 1-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the integrated wiper (WEP) Insert corners: .015″ .031″, .062″ .093″ .125″, .156 R | Country of Origin | USA |
