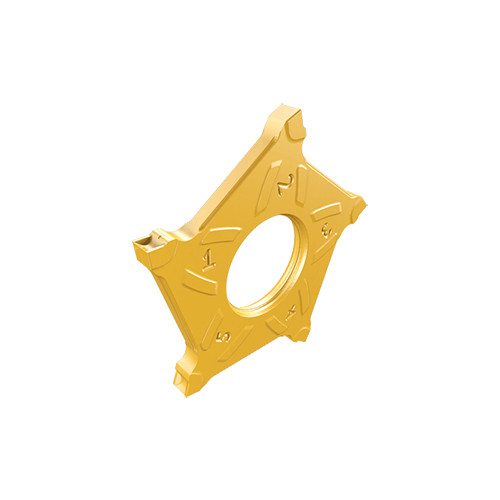

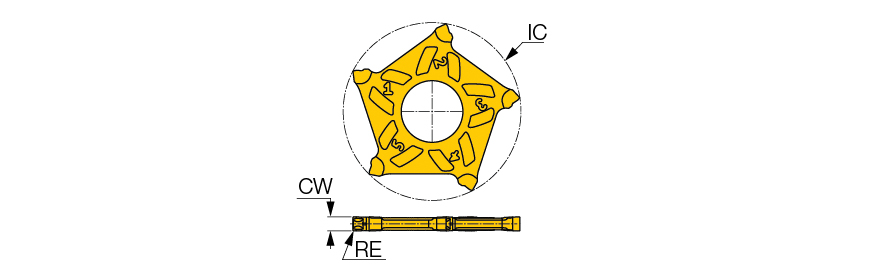

PENTA D40N300PB020 IC808G
Parting Off Insert; 0.118″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiAlN+AlTiN+TiN ; IC808G
| Cutting Width (CW) | 0.118″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Chip Breaker Type | PB |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC808G | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Parting and grooving, pentagonal inserts. Used for parting bearing steel and other ductile materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.045
