GDMY 318-159 IC830

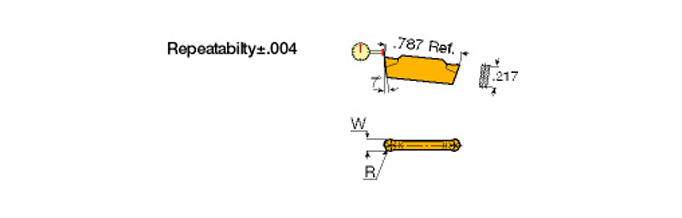

Parting Off Insert; 1/8″ CW × 0.787″ Length × 0.063″ Corner Radius ; Left Hand ; Carbide ; AlTiN|TiN ; IC830

| Cutting Width (CW) | 1/8″ | Grade | IC830 |
| Corner Radius (RE) | 0.063″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.787″ | Applicable Material | Steel|Stainless Steel|Hi-Temp Alloys |
| Cutting Depth Maximum (CDX) | 0.689″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | AlTiN|TiN |

Product Features
| Family Description | Utility, double-ended, full radius, Y-type chipformer inserts. Used for turning, profiling and grooving. Cuts arc to 250° at low to medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.008
