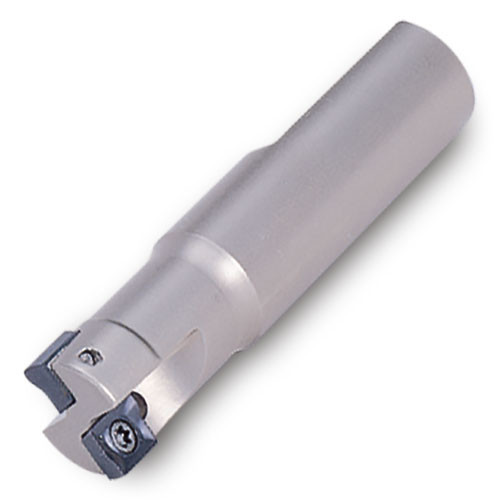

12J1M-0601079R01
| Cutting Diameter (DC/DCX) | 5/8″ | Usable Length (LU) | 1.06″ |
| Cutting Diameter (DC) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.3″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.2 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 1.09″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | .30″ Max. Depth of Cut Insert Corner: .015″ and .031″ R Insert with 2 Indexes | Country of Origin | Usa |
