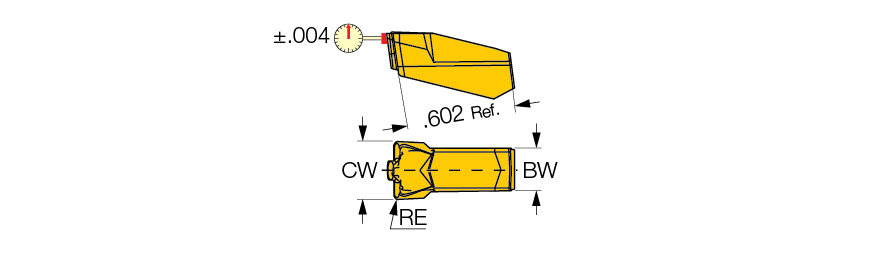

GIMM 8CC IC808
Parting Off Insert; 0.315″ CW × 0.602″ Length × 0.031″ Corner Radius ; Carbide ; TiAlN+AlTiN+TiN ; IC808

| Cutting Width (CW) | 0.315″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Grooving | |
| Corner Radius (RE) | 0.031″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Chip Breaker Type | CC |
| Overall Length (OAL) | 0.602″ | Tool Type | Groove-Turn Utility Inserts |
| Insert Length (INSL) | 0.602″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
| Shape | 90° Rectangular | Insert Width (W1) | 0.228″ |

Product Features
| Family Description | Single-ended, utility insert for external rough grooving and side turning with a front chip splitter. Used mainly on ductile materials. | Country of Origin | Israel |
Shipping Info
Package Weight
0.02
