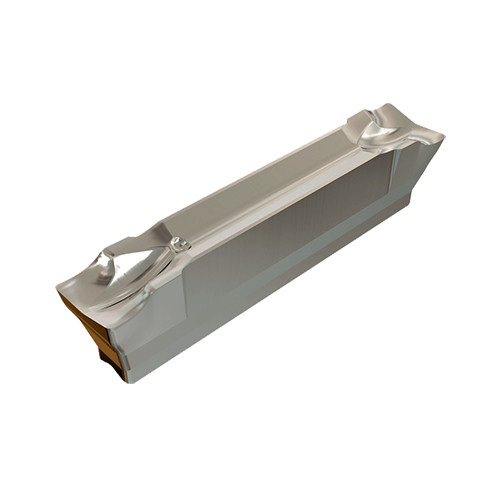

HGR 3002J-6D IC354
Parting Off Insert; 0.118″ CW × 0.618″ Length × 0.0079″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC354

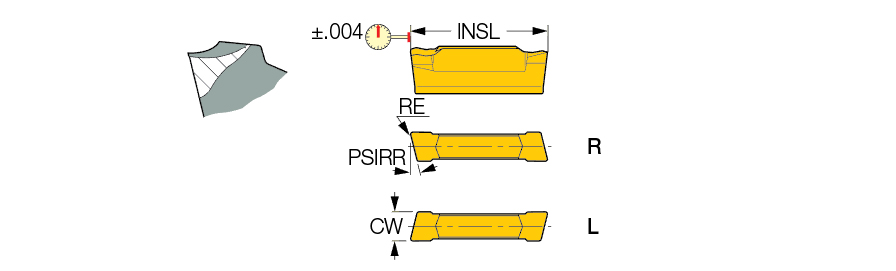

| Cutting Width (CW) | 0.118″ | Application | | Parting | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 0.618″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Insert Length (INSL) | 0.618″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Angle | 12 Degrees |
| Grade | IC354 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
Product Features
| Family Description | First choice for soft materials, parting of tubes, small diameters and thin-walled parts. For low carbon, alloy and austenitic stainless steel. Low-to medium feeds. JS - sharp corner. Used when grooving depth exceeds .709″. | Country of Origin | Israel |
| Remarks | No depth limit |
Shipping Info
Package Weight
0.4
