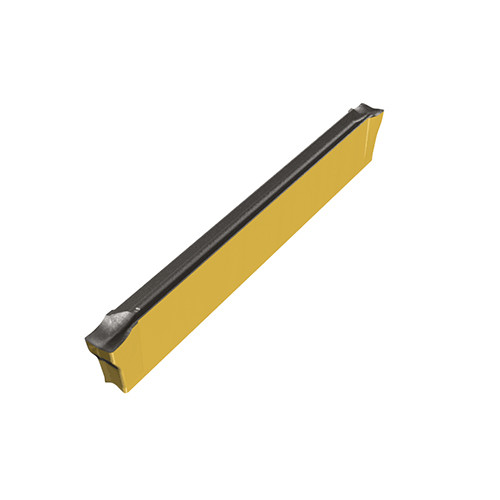

DGN 2002J-XL IC5400
Parting Off Insert; 0.081″ CW × 0.0079″ Corner Radius ; Neutral ; Carbide ; TiCN+Al2O3+TiN ; IC5400

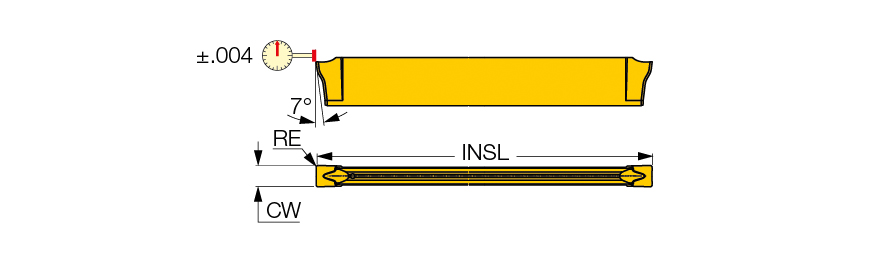

| Cutting Width (CW) | 0.081″ | Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.0079″ | Application | | Ext. Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 1.26″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Insert Length (INSL) | 1.26″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 1.181″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | IC5400 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
Product Features
| Family Description | Parting & grooving, double-sided insert with a J-type chipformer. First choice for soft materials and stainless steel, parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake. Low-to-medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.014
