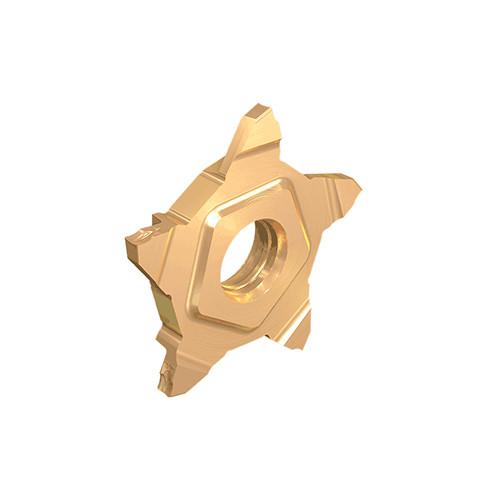

PENTA 24N157J079RS IC908

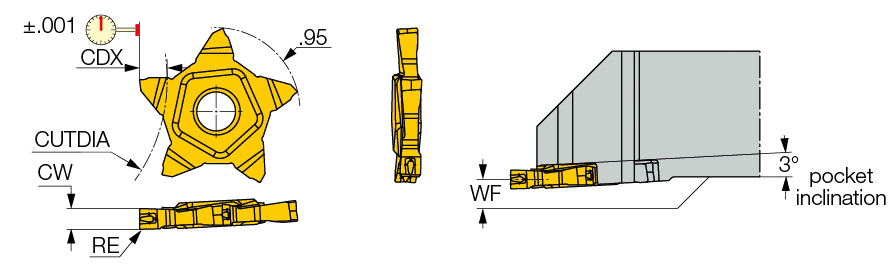

| Cutting Width (CW) | 0.062″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius (RE) | 0.0311″ | Chip Breaker Type | J |
| Cutting Depth Maximum (CDX) | 0.118″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC908 | Functional Width (WF) | 0.047″ |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00787″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.157″ |
| Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
Product Features
| Family Description | Parting and precision grooving pentagonal inserts, for next to high shoulder applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.006
