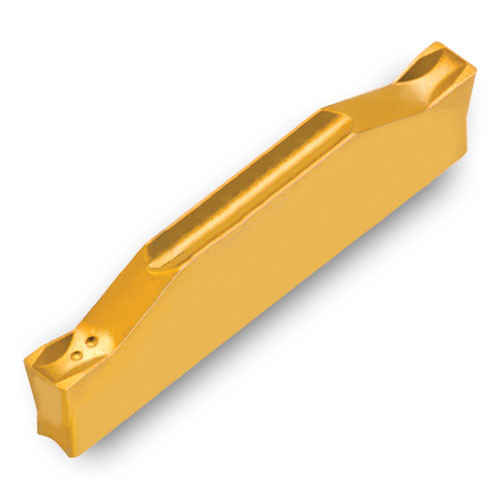

TDV4 TT9080
Parting Off Insert; 0.157″ CW × 0.787″ Length × 0.118″ Thickness × 0.012″ Corner Radius ; Neutral
| Cutting Width (CW) | 0.157″ | Min. Grooving Feed (fg(min)) | 0.0031″ |
| Corner Radius (RE) | 0.012″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.118″ | Angle | 12 Degrees |
| Insert Length (INSL) | 0.787″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.748″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | | Insert Seat Size Code (SSC) | 4 |
| Max. Grooving Feed (fg(max)) | 0.008″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.011
