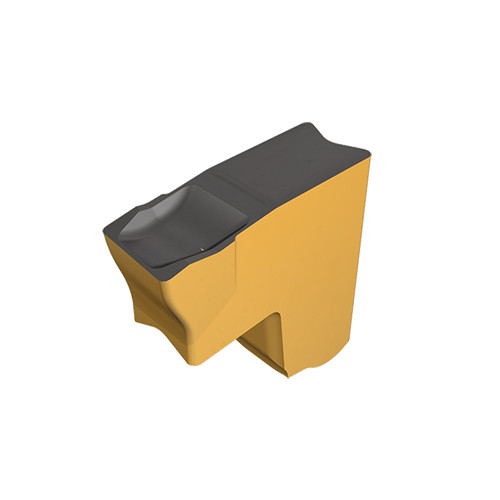

TAG R2C-6D IC808
First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds.

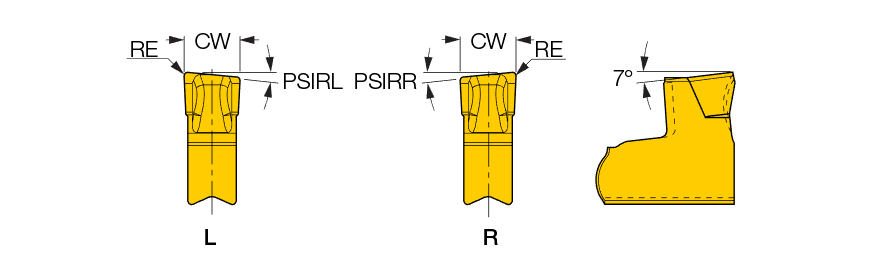

| Cutting Width (CW) | 0.081″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+AlTiN+TiN | Angle | 12 Degrees |
| Grade | IC808 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Application | | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00393″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds. | Country of Origin | Israel |
| Remarks | The feed values for grade IC20 should be decreased by 50%. |
Shipping Info
Package Length
4.10000
Package Width
1.40000
Package Height
.30000
Package Weight
0.004
