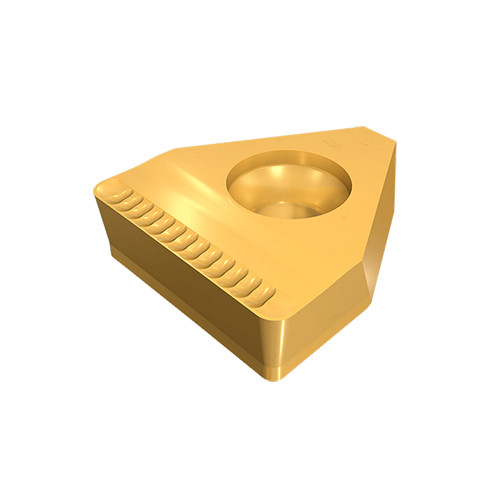

TIGERV 2006-152 IC830

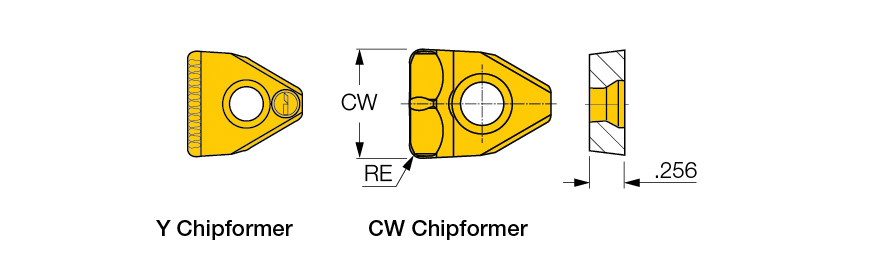

Parting Off Insert; 0.79″ CW × 0.256″ Thickness × 0.06″ Corner Radius ; Carbide ; AlTiN+TiN ; IC830
| Cutting Width (CW) | 0.79″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.06″ | Max. Grooving Feed (fg(max)) | 0.0236 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.256″ | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | AlTiN+TiN | Measurement Type | Inch |
| Grade | IC830 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00314″ |
| Application | | Ext. Grooving | |
Product Features
| Family Description | Utility single-ended inserts for external deep grooving and heavy machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.062
