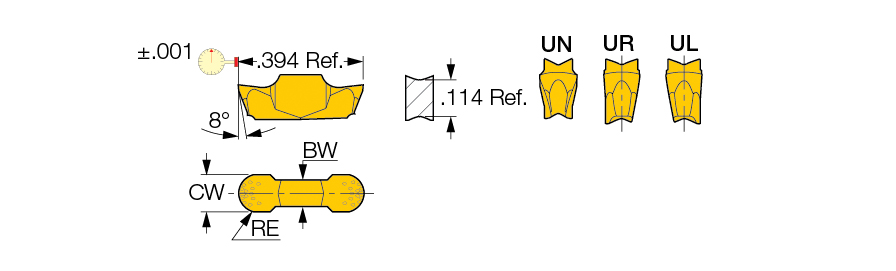

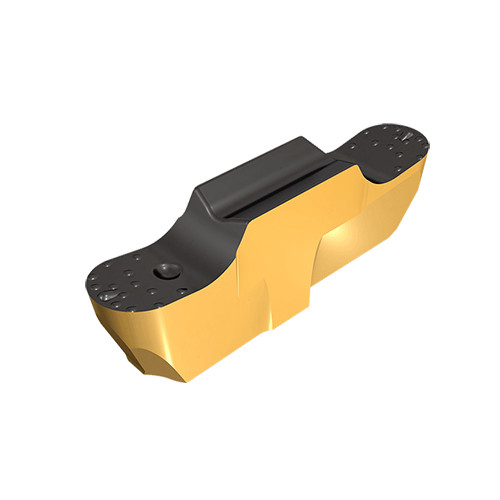

GEPI 2.00-1.00UL IC08
Parting Off Insert; 0.079″ CW × 0.394″ Length × 0.0394″ Corner Radius ; Carbide ; Uncoated ; IC08
| Cutting Width (CW) | 0.079″ | Application | | Ext. Undercut | Int. Undercut & Turning | |
| Corner Radius (RE) | 0.039″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Overall Length (OAL) | 0.394″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Insert Length (INSL) | 0.394″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.079″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC08 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Shape | 90° Rectangular | Insert Width (W1) | 0.071″ |
Product Features
| Family Description | Precision double-ended inserts for internal undercutting. Min. bore diameter .453″. | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
