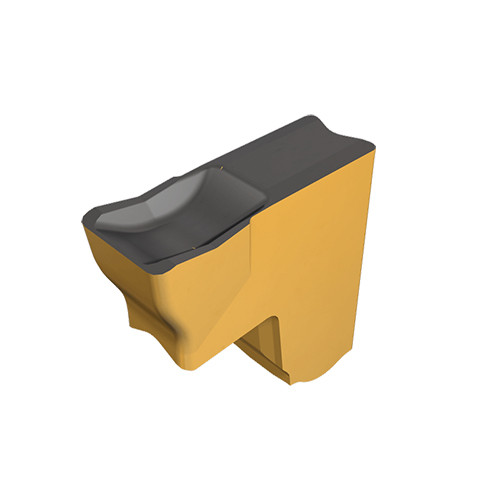

TAG N4C IC908
Parting Off Insert; 0.157″ CW × 0.0094″ Corner Radius ; Neutral ; Carbide ; TiAlN ; IC908

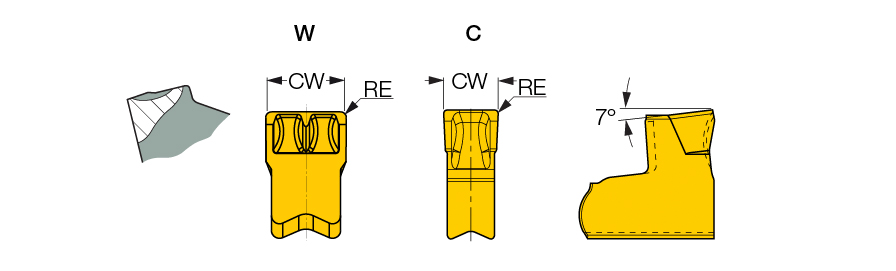

| Cutting Width (CW) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0094″ | Max. Grooving Feed (fg(max)) | 0.0118 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ | Min. Grooving Feed (fg(min)) | 0.0039 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiAlN | Tool Type | Parting & Grooving Inserts |
| Grade | IC908 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity (except 7 & 12 mm with double cavity), negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |
| Remarks | The feed values for grade IC20 should be decreased by 50%. |
Shipping Info
Additional Fees and Notes
0
Package Length
.40000
Package Width
.28000
Package Height
.14000
Package Weight
0.006
