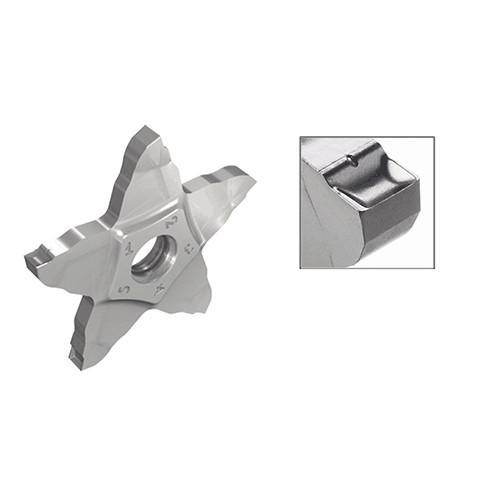

PENTA 34R300PB-6D IC908
Parting Off Insert; 0.118″ CW × 0.0079″ Corner Radius ; Right Hand ; Carbide ; TiAlN ; IC908

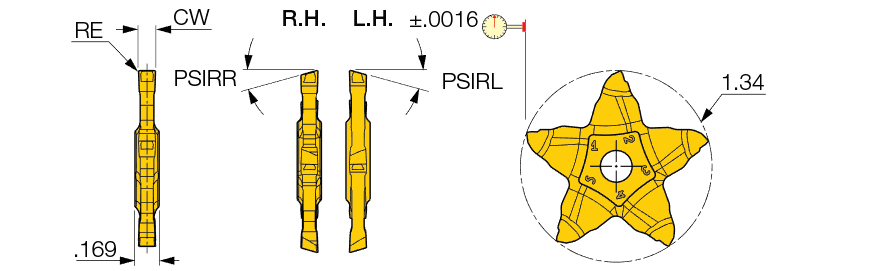

| Cutting Width (CW) | 0.118″ | Max. Grooving Feed (fg(max)) | 0.0031 ″/rev |
| Corner Radius (RE) | 0.0079″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0″ | Chip Breaker Type | PB |
| Cutting Depth Maximum (CDX) | 0.374″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN | Work Piece Parting Diameter Maximum (CUTDIA) | 0.787″ |
| Grade | IC908 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Application | | Parting | | Insert Width (W1) | 0.169″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Pentagonal inserts for parting bearing steel and other ductile materials. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info. |
Shipping Info
Package Weight
0.056
