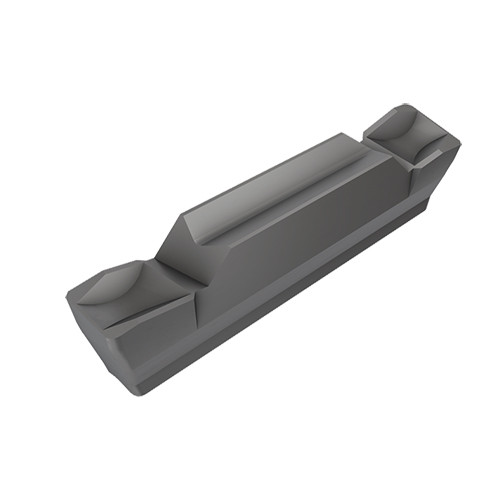

HGR 3003C-6D IC328
Parting Off Insert; 0.118″ CW × 0.614″ Length × 0.0118″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC328

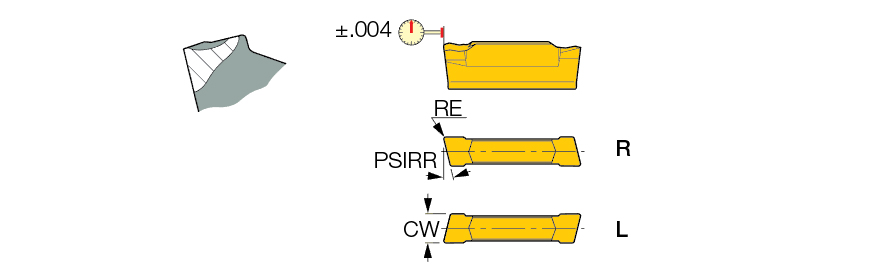

| Cutting Width (CW) | 0.118″ | Application | | Parting | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.614″ | Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Insert Length (INSL) | 0.614″ | Min. Grooving Feed (fg(min)) | 0.0024 ″/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiCN | Angle | 12 Degrees |
| Grade | IC328 | Measurement Type | Inch |
| Shape | 90° Rectangular | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
Product Features
| Family Description | Inserts for parting bars, hard materials and tough applications. | Country of Origin | Israel |
Shipping Info
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.003
