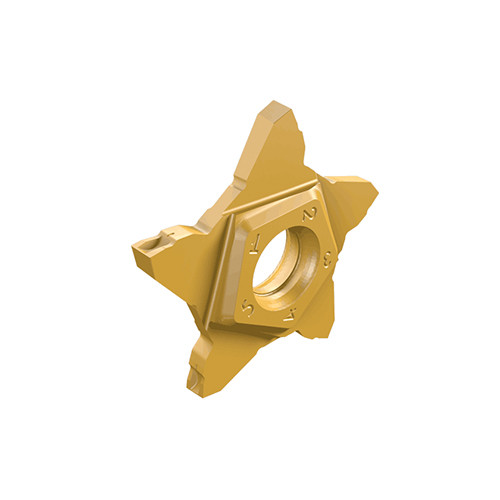

PENTA 24R200C06D IC1008
Parting Off Insert; 0.079″ CW × 0.0039″ Corner Radius ; Right Hand ; Carbide ; TiAlN+TiN ; IC1008

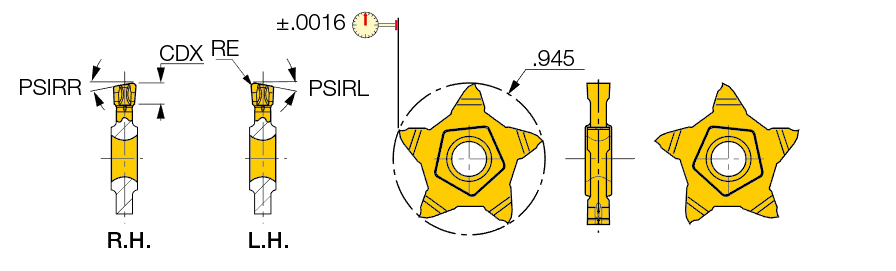

| Cutting Width (CW) | 0.079″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Corner Radius (RE) | 0.0039″ | Chip Breaker Type | C |
| Cutting Depth Maximum (CDX) | 0.236″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiAlN+TiN | Work Piece Parting Diameter Maximum (CUTDIA) | 0.472″ |
| Grade | IC1008 | Measurement Type | Inch |
| Shape | 108° Pentagonal | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Application | | Parting | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Width (W1) | 0.157″ |
| Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
Product Features
| Family Description | Parting inserts with 5 cutting edges. First choice for the parting of bars, hard materials and tough applications. A positive rake, single cavity, negative land and shoulders, provides extra cutting-edge strength. | Country of Origin | Israel |
| Remarks | For parting and grooving range, click on More Info |
Shipping Info
Package Length
3.00000
Package Width
2.00000
Package Height
1.00000
Package Weight
0.022
