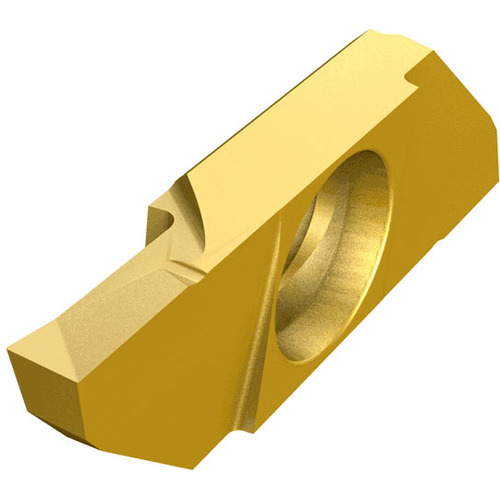

SCIR 22-200NP05 IC1008
Parting Off Insert; 0.079″ CW × 0.866″ Length × 0.276″ Thickness × 0.002″ Corner Radius ; Right Hand ; Carbide ; TiAlN+TiN ; IC1008

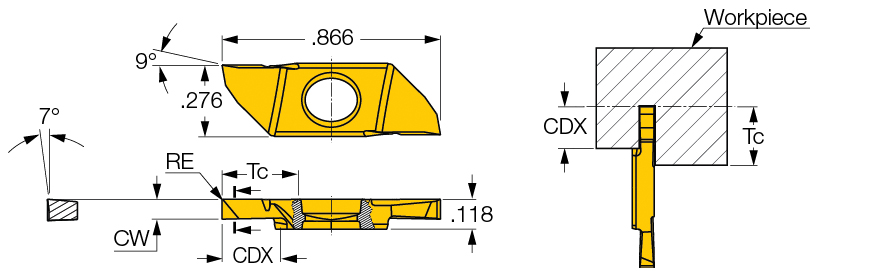

| Cutting Width (CW) | 0.079″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.002″ | Max. Grooving Feed (fg(max)) | 0.0035 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ | Min. Grooving Feed (fg(min)) | 0.0012 ″/rev |

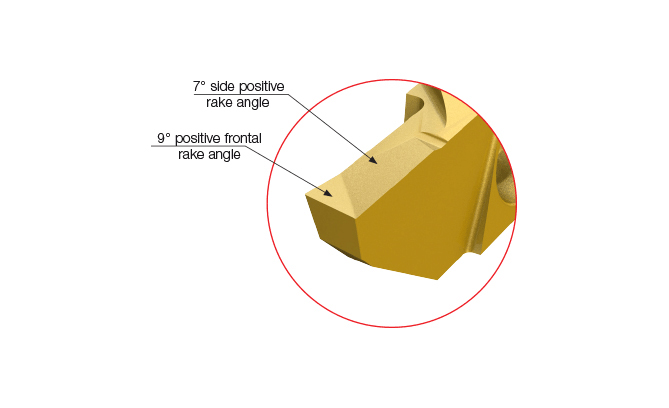

| Insert Thickness (S) | 0.276″ | Insert Rake Angle (GAN) | 9 Degrees |
| Overall Length (OAL) | 0.866″ | Tool Type | Groove-Turn Precision Inserts |
| Insert Length (INSL) | 0.866″ | Angle | 12 Degrees |
| Cutting Depth Maximum (CDX) | 0.236″ | Min D.O.C. | 0.002″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Depth of Cut Maximum (APMX) | 0.098″ |
| Grade | IC1008 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.0008″ |
| Cutting Direction (HAND) | Right Hand | Insert Width (W1) | 0.118″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
Product Features
| Family Description | Groove-turn and parting inserts used on Swiss type automatics and small CNC lathes. | Country of Origin | Israel |
