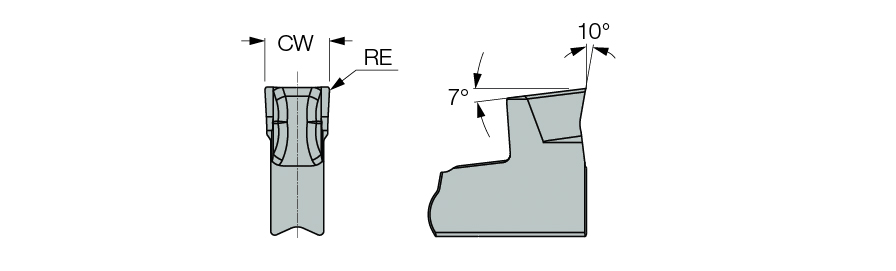

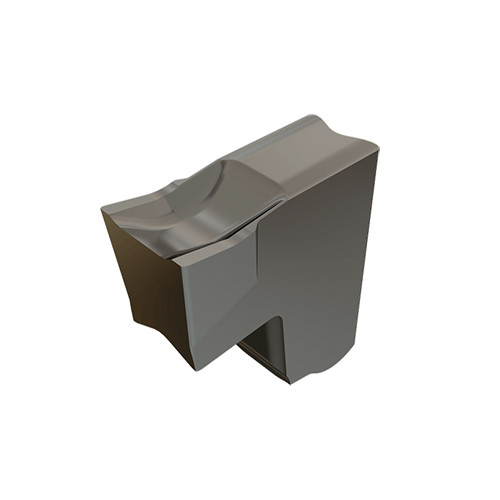

TAG N2A IC20
Parting Off Insert; 0.079″ CW × 0.008″ Corner Radius ; Neutral ; Carbide ; Uncoated ; IC20
| Cutting Width (CW) | 0.079″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius (RE) | 0.008″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0016″ | Insert Rake Angle (GAN) | 10 Degrees |
| Cutting Edge Material | Carbide | Chip Breaker Type | A |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Parting | Side Slotting | Slitting | T Slotting | Y Axis Parting & grooving | | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Parting grooving and slitting, single-ended inserts. Used for machining aluminum. | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
