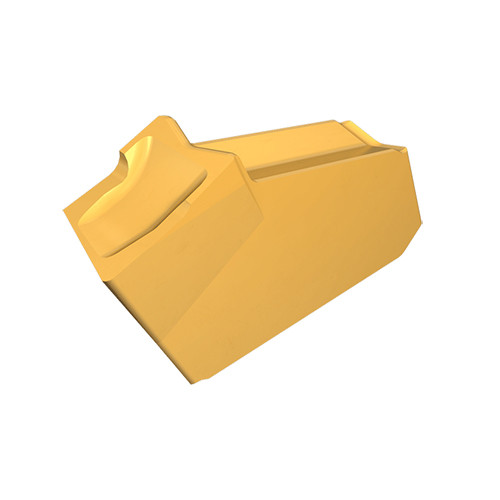

GFR 2.4 - 4D IC354
Parting Off Insert; 0.094″ CW × 0.0063″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC354

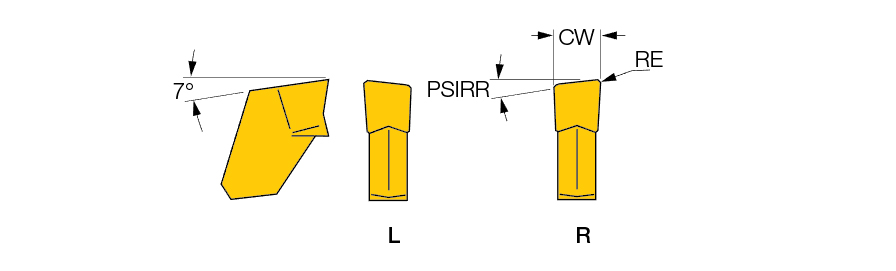

| Cutting Width (CW) | 0.094″ | Max. Grooving Feed (fg(max)) | 0.0055 ″/rev |
| Corner Radius (RE) | 0.0063″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | C |
| Coating | TiCN | Tool Type | Parting & Grooving Inserts |
| Grade | IC354 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Application | | Parting | | Cutting Edge Angle Major Right Hand (PSIRR) | 4 Degrees |
| Applicable Material | | Steel | Stainless Steel | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Length
3.86000
Package Width
1.57700
Package Height
.41900
Package Weight
0.002
