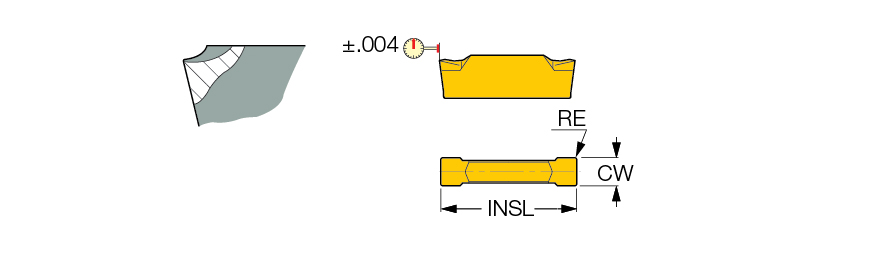

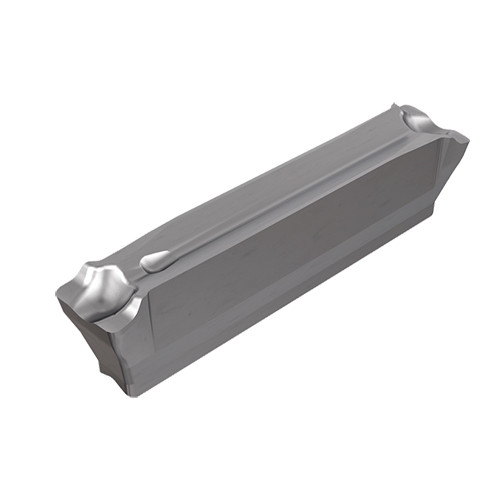

HGN 3003UT IC328
Parting Off Insert; 0.118″ CW × 0.0118″ Corner Radius ; Right Hand ; Carbide ; TiCN ; IC328
| Cutting Width (CW) | 0.118″ | Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ | Max. Grooving Feed (fg(max)) | 0.0051 ″/rev |
| Overall Length (OAL) | 0.622″ | Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Insert Length (INSL) | 0.622″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN | Measurement Type | Inch |
| Grade | IC328 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Width Tolerance (+/-) (CWTOL) | 0.00196″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | A chipformer for use at low feeds. Recommended for Cr-Ni alloys and low carbon steel, especially in the bearing industry and on similar, problematic materials. The narrow chipformer design ensures short deformed chips. | Country of Origin | Israel |
| Remarks | No depth limit |
Shipping Info
Package Weight
0.006
