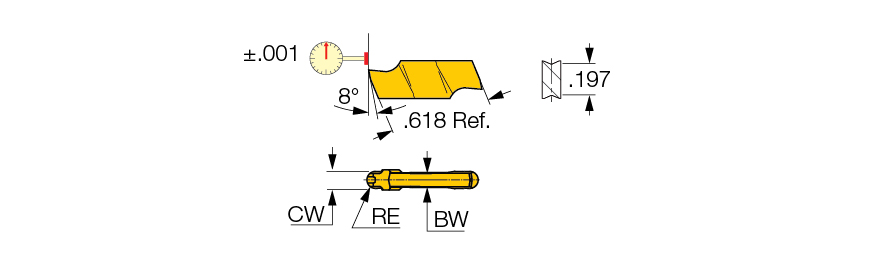

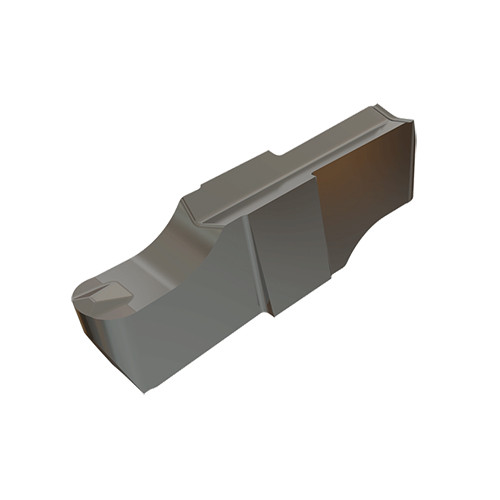

GIPI 2.39-1.20 IC908
Parting Off Insert; 0.094″ CW × 0.618″ Length × 0.047″ Corner Radius ; Carbide ; TiAlN ; IC908
| Cutting Width (CW) | 0.094″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.047″ | Max. Grooving Feed (fg(max)) | 0.0039 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Overall Length (OAL) | 0.618″ | Chip Breaker Type | P |
| Insert Length (INSL) | 0.618″ | Tool Type | Groove-Turn Precision Inserts |
| Cutting Depth Maximum (CDX) | 0.252″ | Angle | 12 Degrees |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00078″ |
| Shape | 90° Rectangular | Insert Width (W1) | 0.094″ |
| Application | | Int. Grooving (side limit) | |
Product Features
| Family Description | Precision inserts for internal grooving and recessing. Double-ended, P-type chipformer, medium feeds, min. bore .787″. | Country of Origin | Israel |
| Remarks | The tool pocket should be modified DMIN for internal applications=.787 |
Shipping Info
Package Weight
0.15
