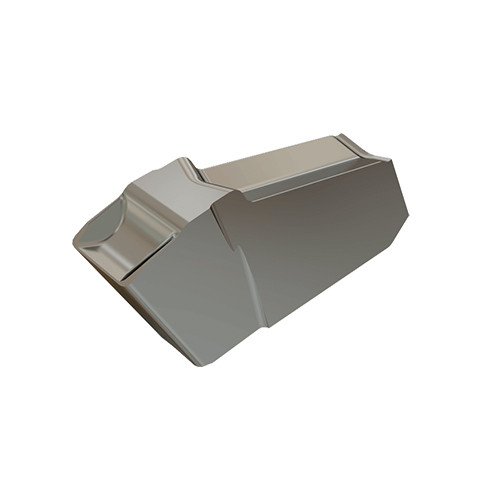

GFN 4M IC20

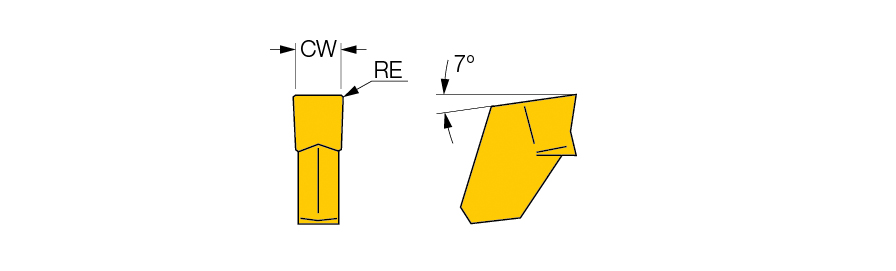

| Cutting Width (CW) | 0.161″ | Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.009″ | Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.002″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Edge Material | Carbide | Chip Breaker Type | M |
| Coating | Uncoated | Tool Type | Parting & Grooving Inserts |
| Grade | IC20 | Angle | 12 Degrees |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Ext. Grooving | Int. Grooving | Parting | |
Product Features
| Family Description | First choice for the parting of nonferrous materials, high temperature alloys (Ni-base, inconel, etc.). Single cavity with a strong cutting edge. Used for deep grooving at medium-to-high feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
