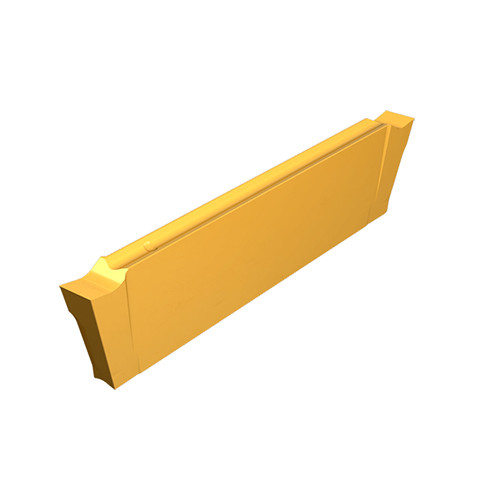

DGR 2000P-6D IC508
Parting Off Insert; 0.079″ CW × 0.811″ Length × 0.002″ Corner Radius ; Right Hand ; Carbide ; TiCN+TiN ; IC508

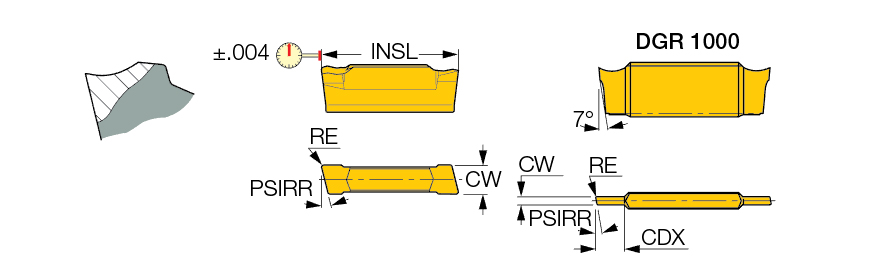

| Cutting Width (CW) | 0.079″ | Application | | Parting | |
| Corner Radius (RE) | 0.002″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 0.811″ | Max. Grooving Feed (fg(max)) | 0.0027 ″/rev |
| Insert Length (INSL) | 0.811″ | Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Angle | 12 Degrees |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC508 | Body Material | Carbide |
| Shape | 90° Rectangular | Cutting Edge Angle Major Right Hand (PSIRR) | 6 Degrees |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Very positive rake inclination and sharp cutting edge. Low cutting forces, reduced built-up edge. Used mainly on soft materials and thin parts at low feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
